PortAI DT Mobile

数字孪生 AI 港口智能决策系统的 Flutter 移动前台
The Flutter operations and human-decision frontend of the dual-frontend port digital twin

研发作者：温家懿 · Research Author: Wen Jiayi

双语说明 / Bilingual guide · 共享后端契约 / Shared backend · 双端简历证据 / Evidence · 安全策略 / Security

_{与Web端共享同一业务证据和FastAPI决策后端；移动端证明的是人机闭环、回执语义与失效安全，不重复制造另一组“移动端业务收益”。
The mobile frontend shares one evidence authority with the Web system and proves human-gated workflow semantics—not a duplicate set of business gains.}

PortAI DT Mobile 是“双端港口智能决策系统”的移动前台，与 Web 前台共同连接 port-dt-multi FastAPI。 移动端负责态势查看、风险研判、候选策略对比、人工表态、回执与审计回放； Web 端负责数字孪生建模、参数配置、训练评测和策略推演。两端读取同一份 业务基准、模型登记和服务端审计证据。

PortAI DT Mobile is the Flutter frontend of the dual-frontend port decision system. Together with the Web frontend, it connects to the same port-dt-multi FastAPI service. Mobile owns situational awareness, risk review, candidate comparison, human decisions, receipts, and audit replay; Web owns digital-twin modelling, parameter configuration, training/evaluation, and strategy simulation. Both consume the same business benchmark, model registry, and server-side evidence authority.

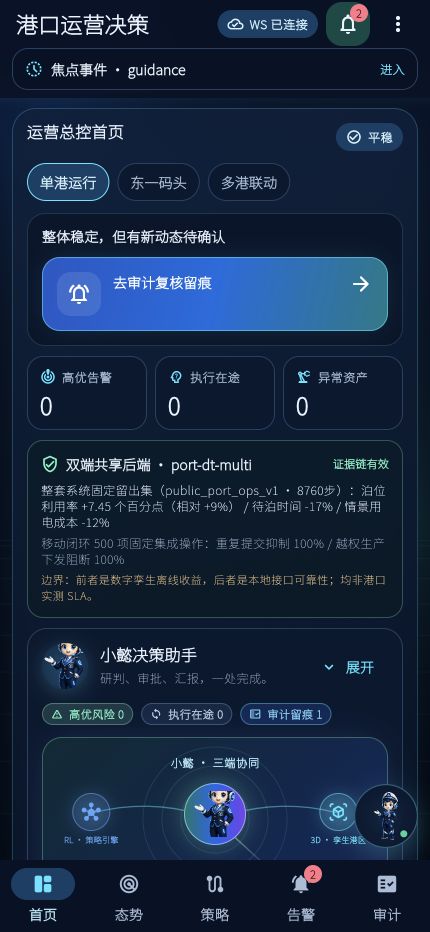

移动首页直接读取共享后端身份、系统级 KPI 和 500 项移动闭环证据；界面不会在本地另造一套收益数字。
The mobile home screen reads backend identity, system KPIs, and the 500-operation workflow evidence directly from the shared service; it does not fabricate a second local set of gains.

默认运行于 public_replay，生产下发关闭。仓库中的 backend/portai_rl 保留为独立的公开 AIS 算法实验参考，不是双端系统默认后端，也不用于证明 泊位 +7.45 个百分点 / 待泊 -16.94% / 成本 -11.80% 的系统级业务结果。

The default mode is public_replay, with production dispatch disabled. backend/portai_rl is retained as an independent public-AIS algorithm experiment; it is not the dual-frontend system’s default backend and does not support the system-level berth +7.45 percentage-point / waiting −16.94% / cost −11.80% claims.

flowchart LR
  A["Public inputs + declared derivatives"] --> B["port-dt-multi FastAPI<br/>twin · RL · benchmark · audit"]
  B --> C["Web frontend<br/>model · train · simulate"]
  B --> D["Flutter frontend<br/>situation · decision · receipt"]
  E["SAC · PPO · TD3 · DQN · A2C · TQC · MPC"] --> B
  F["Human gate<br/>requester ≠ approver"] --> B
  D --> G{"Mobile production dispatch?"}
  G -- "Always blocked" --> H["Dry-run receipt + SHA-256 audit"]
  B --> I["Separate /api/actuators gate<br/>whitelist · constraints · two-person"]

关键边界：TRAIN render_mode=None → 模型与历史哈希 → 训练进程结束 → held-out TEST → 记录轨迹 → 客户端回放。
Critical boundary: TRAIN render_mode=None → model and history hashes → training process exits → held-out TEST → recorded trajectory → client replay.

移动端一次核验 public_us_la_6min_v1、数据 SHA-256、port_ops_v2、37维观测、5维动作、七算法注册表和正式证据数量；任一项不一致即失效关闭。
The client verifies the dataset, SHA-256, port_ops_v2, 37-D observations, 5-D actions, seven-method registry, and formal-evidence counts as one fail-closed contract.

短步数 smoke 只验证数据、训练、测试和产物接线，不证明收敛、优越性或现场适用性。正式比较必须固定数据哈希、环境版本、种子、预算和评价口径，并保留完整产物。
A short smoke run verifies only data, training, evaluation, and artifact wiring; it does not prove convergence, superiority, or site applicability. A formal comparison must pin the data hash, environment version, seeds, budget, evaluation protocol, and complete artifacts.

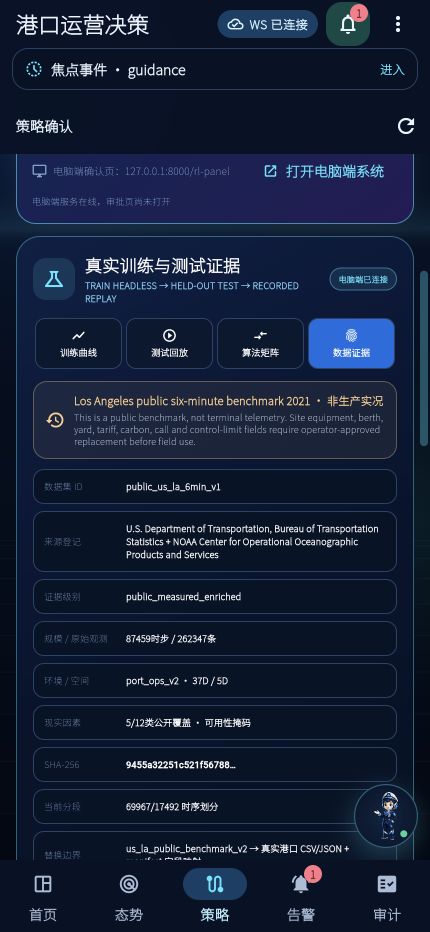

算法可信度基准使用 BTS 与 NOAA 洛杉矶港 2021 公开数据：87,459 个六分钟时步、262,347 条独立公共原始观测，按 69,967/17,492 时序划分，登记 42 条短缺口插值；port_ops_v2 包含 37维观测、5维建议动作和12类现实因素可用性掩码，当前公开覆盖 5/12 类。六种 RL 各完成 3 个随机种子 × 10,000 步正式训练并在 10 个确定性留出窗口评测，MPC 按相同窗口单独登记。
The algorithm benchmark uses 2021 BTS and NOAA public data for Los Angeles: 87,459 six-minute steps and 262,347 independent public source observations, split chronologically into 69,967/17,492 with 42 short-gap interpolations. port_ops_v2 exposes 37 observations, five advisory actions, and availability masks for 12 real-world factor classes; public data currently covers 5/12. Each of six RL methods has three seeded 10,000-step formal runs evaluated on ten deterministic holdout windows, while MPC is registered separately on the same windows.

双端系统业务基准使用共享后端的 public_port_ops_v1：以 MPA 新加坡 2020–2025 官方月度吞吐量和集装箱船到港量为锚点构造 52,608 条小时驱动记录， 按 35,064 train、8,784 validation 和 8,760 test 划分。2025 留出测试相对 “静态 FCFS + 固定能源时刻表”使泊位有效利用率由 83.63% 提升至 91.09% （+7.45 个百分点），平均待泊时间缩短 16.94%、情景用电成本降低 11.80%。 这些是公开输入驱动的数字孪生结果，不是港口实测 KPI。

The shared backend benchmark public_port_ops_v1 anchors 52,608 hourly driver records to official MPA Singapore monthly throughput and container-vessel arrivals for 2020–2025, split chronologically into 35,064 train, 8,784 validation, and 8,760 test records. On the 2025 holdout, effective berth utilization rises from 83.63% to 91.09% (+7.45 percentage points), mean waiting time falls 16.94%, and scenario energy cost falls 11.80% against static FCFS plus a fixed energy schedule. These are public-input-driven digital-twin results, not measured terminal KPIs.

本仓库独立实验后端另带一份 NOAA / MarineCadastre 长滩邻近历史 AIS 样本， 只用于算法接线研究；它与上述系统业务指标是两套证据，不混合计算。

The optional standalone backend bundles a separate historical NOAA/MarineCadastre AIS sample near Long Beach for algorithm-wiring research only. It is a different evidence set and is never mixed into the system business benchmark.

接入另一个港口不需要重写移动端或算法层：
Connecting another port does not require rewriting the algorithm layer:

1. 将真实港口 CSV/JSON 映射到共享后端 port_ops_v2 字段和12类因素可用性掩码。 / Map site CSV/JSON into port_ops_v2 fields and 12 factor-availability masks.
2. 新建数据 manifest 与 port profile，记录来源、单位、时区、字段映射、控制边界和 SHA-256。 / Create a dataset manifest and port profile with provenance, units, timezone, mappings, limits, and SHA-256.
3. 通过共享后端质量门禁与无随机打乱的时序 train/test 划分。 / Pass quality gates and a chronological, non-shuffled train/test split.
4. 重新运行多种子训练、留出评测和 MPC 对照；旧环境或旧数据模型不得晋级。 / Re-run multi-seed training, holdout evaluation, and MPC; stale models cannot be promoted.
5. 移动端只需更换 API_BASE_URL 与 RL_DATASET_ID 场景参数，会重新核验数据、环境、算法和证据合同。 / Change only the API_BASE_URL and RL_DATASET_ID scenario parameters; mobile revalidates the dataset, environment, algorithms, and evidence contract.

独立 AIS 实验室仍可按 port_traffic_timeseries_v1 与 scripts/import_noaa_ais.py 复现实验；它不替代共享后端的 port_ops_v2 生产接入合同。TOS、ECS、VTS 或现场遥测仍需港口专属适配、标定和独立验收，不能靠字段改名获得生产可信度。
scripts/import_noaa_ais.py is the public-AIS conversion reference. TOS, ECS, VTS, and site telemetry still require port-specific adaptation, calibration, and independent acceptance; renaming fields cannot create production credibility.

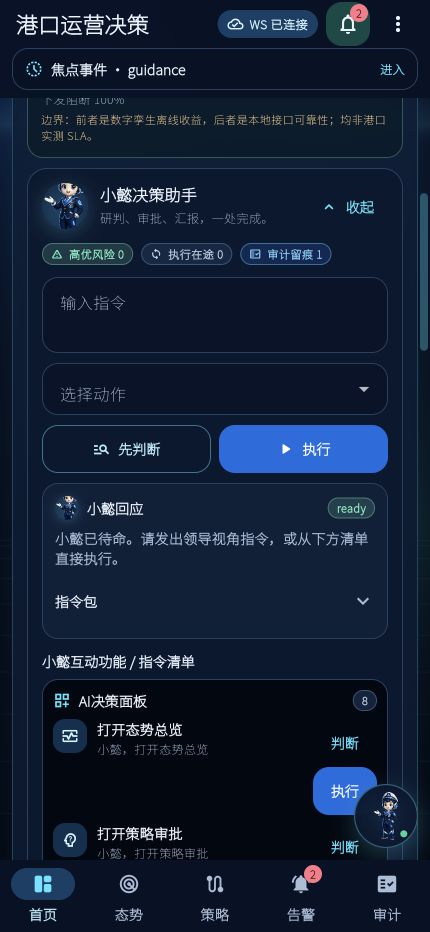

移动端使用与 Web 同源的小懿 Q 版海事形象。指令判断、执行按钮、页面跳转、策略审阅和审计记录均调用现有控制器；小懿不绕过人工确认或生产门禁。
Mobile uses the same Q-version maritime Xiaoyi asset as Web. Command review, execution buttons, navigation, policy review, and audit logging invoke existing controllers; Xiaoyi never bypasses human confirmation or production gates.

要求：Flutter 3.38.x / Dart 3.10.x，Python 3.12–3.14。建议使用隔离环境。
Requirements: Flutter 3.38.x / Dart 3.10.x, Python 3.12–3.14. Use isolated environments.

git clone https://github.com/wenjiayi123/port-dt-multi.git
cd port-dt-multi
python3.12 -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txt
PORT_DT_CORS_ORIGINS=http://127.0.0.1:7357 \
  python -m uvicorn app.server:app --host 127.0.0.1 --port 8000

另开终端启动 Flutter：
Start Flutter in another terminal:

git clone https://github.com/wenjiayi123/dt-mobile-app.git
cd dt-mobile-app
flutter pub get
flutter run -d chrome --web-port=7357 \
  --dart-define=API_BASE_URL=http://127.0.0.1:8000 \
  --dart-define=RL_DATASET_ID=public_us_la_6min_v1 \
  --dart-define=APP_ENV=public_replay

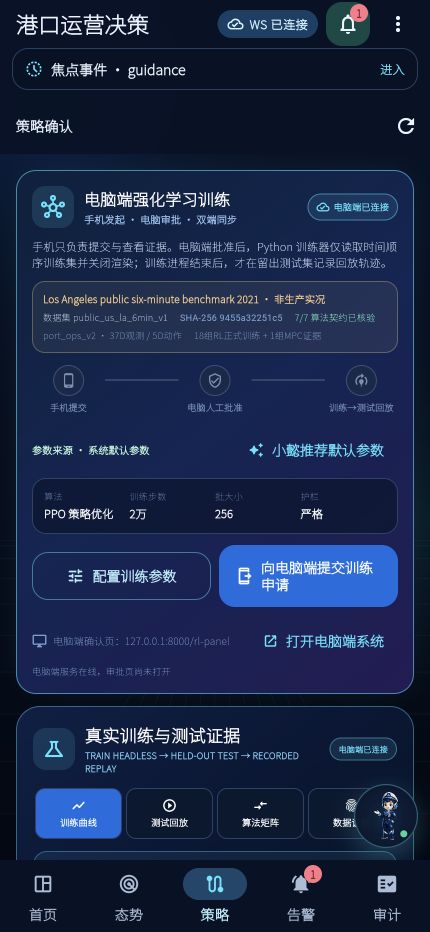

在“策略”页选择基线和实验预算，提交申请；电脑端打开 http://127.0.0.1:8000/rl-panel，由不同操作者批准后才创建本地实验进程。
Choose a baseline and experiment budget on the Policy page and submit a request. A different operator must approve it from http://127.0.0.1:8000/rl-panel before the local experiment process can be created.

Docker 方式：
Docker:

docker compose up --build

指标、测试与双端共享证据的对应关系见 docs/EVIDENCE_INDEX.md。

See docs/EVIDENCE_INDEX.md for the mapping among metrics, tests, and dual-frontend evidence.

# Flutter：格式、静态分析与测试 / format, analyze, and test
bash scripts/check.sh

# Python：编译与 API / 训练合同测试 / compile and contract tests
python3.12 -m venv backend/.venv
backend/.venv/bin/python -m pip install -r backend/requirements.txt
bash scripts/check_backend.sh

# 独立AIS实验室五方法接线验证 / standalone AIS lab wiring check; smoke_only=true
backend/.venv/bin/python scripts/smoke_all_baselines.py --timesteps 128

# 发布门禁 / gates above plus data-boundary and fabricated-metric checks
bash scripts/release_check.sh

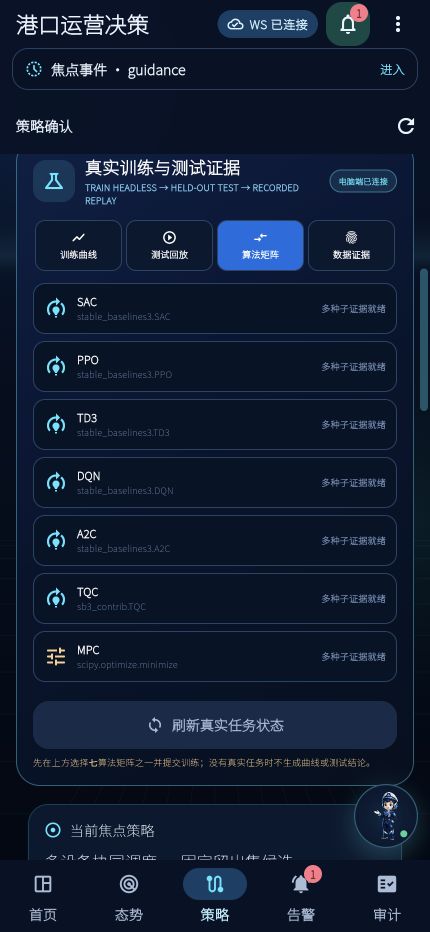

当前移动端基线：Flutter analyze 通过，25项客户端测试通过。共享后端另验证 SAC / PPO / TD3 / DQN / A2C / TQC / MPC 与500项移动闭环操作；独立 AIS 实验后端的 短步数 smoke 仅保留为算法接线证据。

Current mobile baseline: Flutter analysis and 25 client tests pass. The shared backend separately verifies six RL methods plus MPC and 500 mobile closed-loop operations. The standalone AIS backend’s short smoke run is retained only as wiring evidence.

默认 production_dispatch_enabled=false。生产适配至少要求：
The default is production_dispatch_enabled=false. Production adaptation requires at least:

• PORTAI_DATA_MODE=live 与经过验证的实时数据网关 / a verified live-data gateway;
• PORTAI_LIVE_DATA_VERIFIED=true;
• PORTAI_EXECUTION_ADAPTER_VERIFIED=true 与专属执行适配器 / a dedicated execution adapter;
• 32 字符以上 API 密钥、严格 CORS、站点联锁、最小权限凭证与独立验收 / a 32+ character API key, strict CORS, site interlocks, least-privilege credentials, and independent acceptance.

任一条件缺失都只写入 dry-run 审计，不会下发现场动作。本仓库不是经认证的船舶导航、避碰、VTS、监管执法或自动驾驶系统，不应直接用于真实船舶决策。
If any gate is missing, the request produces only a dry-run audit record and never dispatches a site action. This repository is not certified navigation, collision avoidance, VTS, regulatory-enforcement, or autonomous-driving software and must not directly control real-vessel decisions.

lib/                         Flutter移动控制面、状态与数据源 / Flutter surface, state, data sources
backend/portai_rl/           可选AIS实验参考 / optional AIS experiment; not the default backend
backend/config/              可审计数据manifest / auditable manifests
backend/data/                去标识化公开AIS聚合样本 / de-identified public-AIS aggregate
scripts/                     启动、导入、测试与发布门禁 / launch, import, test, release gates
test/                        Flutter合同和界面测试 / Flutter contract and UI tests
backend/tests/               API、隔离、哈希和安全测试 / API, isolation, hash, safety tests
docs/                        方法、数据、接口与安全文档 / methodology, data, API, safety docs

代码使用 MIT License。数据来源与限制单独记录在 docs/DATA_SOURCES.md；软件许可证不会覆盖源数据条款，也不授予任何运营批准。学术使用本架构或实验契约时，请引用 CITATION.cff。

Code is released under the MIT License. Dataset provenance and limitations are documented separately in docs/DATA_SOURCES.md; the software license does not override source-data terms or grant operational approval. Cite CITATION.cff when using the architecture or experiment contract in academic work.
